Product Description:

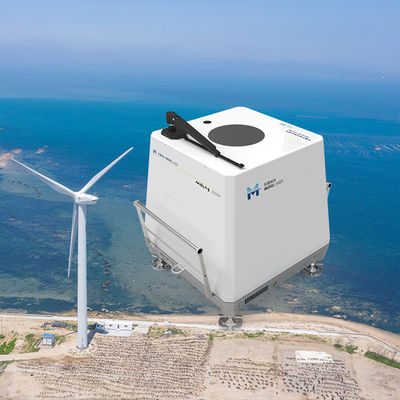

Molas B30oM is a wind lidar specially designed for offshore wind energy measurement. It inherits the main advantages of the ground-based wind lidar Molas B300.
It can meet the harsh use environment at sea, and is equipped with high-precision inertial measurement unit and attitude compensation algorithm, so that it can be placed on non-fixed carriers such as buoys and ships for high-precision real-time wind speed measurement.
Features:
Low cost:
whether it is used with monopile platforms or buoys, the price is much lower than the construction cost of offshore wind towers
Large range:
20~350m, 12 or 24 custom height levels
High precision:
full life cycle, accuracy up to 0.1m/s and 1°
Time-saving and efficient:
the project construction period is short, saving valuable time and cost
Flexible configuration:
flexible wireless connection, enabling remote configuration delivery and data transmission
Data security:
data encryption has no risk of leakage
Non-contact measurement:
convenient and fast, leading the industry
Technical Parameters:
|
Measurement Layer
|
12 Or 24
|
|
Measuring Distance
|
Ordinary Type 20~350m
|
|
Power
|
60W
|
|
Temperature Range
|
-40°C~60℃
|
|
Wind Direction Range
|
0~360°
|
|
Wind Direction Accuracy
|
1°
|
|
Protection Class
|
IP68 (whole Machine)
|
|
Humidity Range
|
0% to 100%
|
|
Size
|
554*430*576mm³ (including Handle)
|
|
Sampling Rate
|
1Hz
|
Applications:
Movelaser's Offshore Wind Lidar product, model number MolasB300M, is a cutting-edge remote wind measurement tool designed for various applications in the offshore wind industry. With a place of origin in China, this innovative lidar system offers precise wind measurements with a sampling rate of 1Hz and a measurement layer of 12 or 24. Weighing less than 50kg and powered by 60W, the MolasB300M is a compact and efficient solution for offshore wind monitoring.
One of the key features of the MolasB300M is its high accuracy in wind speed measurement, with a resolution of 0.1m/s and wind direction measurement with a resolution of 1°. This level of precision makes it a valuable tool for offshore wind farms, meteorological research, and environmental monitoring.
The Offshore Wind Lidar from Movelaser is ideal for a range of product application occasions and scenarios. It can be used for wind resource assessment, power performance testing, and wind farm optimization in offshore locations. The lidar system is also suitable for offshore wind turbine inspections, maintenance planning, and condition monitoring.
Furthermore, the MolasB300M can facilitate communication between offshore wind farms and control centers, providing real-time wind data for operational decision-making. Its easy integration with existing monitoring systems and data platforms makes it a versatile and valuable asset for offshore wind energy projects.
Customers can order the Movelaser Offshore Wind Lidar with a minimum order quantity of 1 set, and it comes packaged in a durable flight case for safe transportation and storage. The delivery time is customizable to meet specific project requirements. Additionally, the lidar system is powered by 24V±5% DC or 100-230V AC, offering flexibility in deployment and operation.
